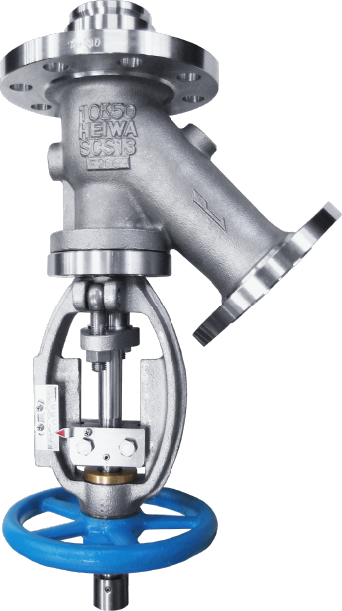

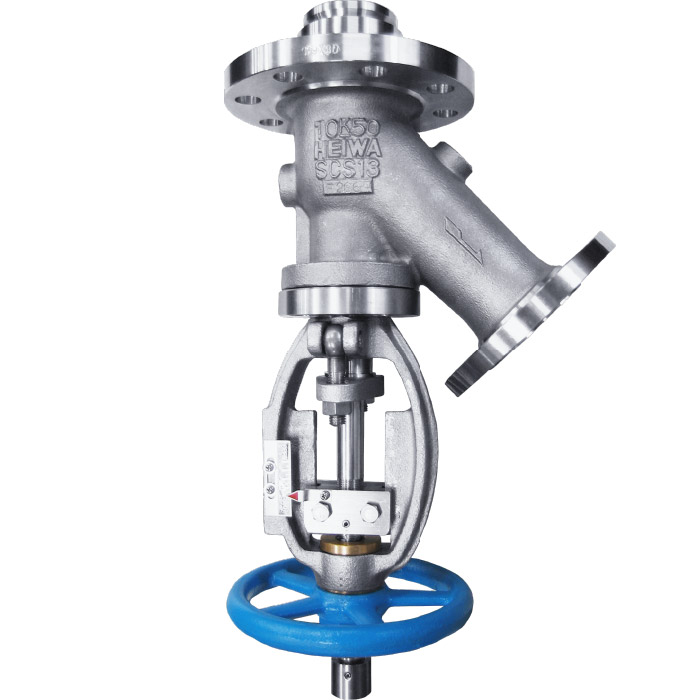

TANK VALVE with BELLOWS SEAL
Molded stainless steel bellows seal that minimizes leakage from the gland
The bellows seal tank valve, in which the gland is completely sealed with a molded bellows and fixed packing, prevents fluids harmful to the human body or the environment from leaking out of the valve, and, on the other hand, prevents outside air from entering the interior of the valve to protect the purity of the fluids. In addition, since the wetted part is completely sealed, even the fine dust cannot penetrate through, and thus the purity and cleanliness of the fluid can be protected.
Taking advantages of the characteristics of special materials to design and manufacture high-performance bellows seal tank valves
Nickel-Base Alloy Bellows - High corrosion resistance forming bellows made of nickel-base alloy. Nickel-based alloys with excellent corrosion resistance are widely used in the chemical industry. We design and manufacture nickel-based alloy bellows seal tank valves according to fluid specifications.
PTFE Molded Bellows - A PTFE molded bellows, which is made by cutting the heat-resistant and chemical-resistant Polytetrafluoroethylene (PTFE) into a bellows shape, is a one-piece machined product. Because it has no joints or seams, it can maintain high strength and high stability.
■ CONNECTION SIZE
15A - 250A
