RISING DISC・LOWERING DISC MANUAL TANK VALVE
The manual flush bottom tank valve is our standard product. As the standard type, it is an easy-to-use valve and has features that are commonly and widely used in industries.
* Our standard outlet discharge angle is 45 degrees in the valve body and can be specified as 60 degrees or 90 degrees as alternative options.

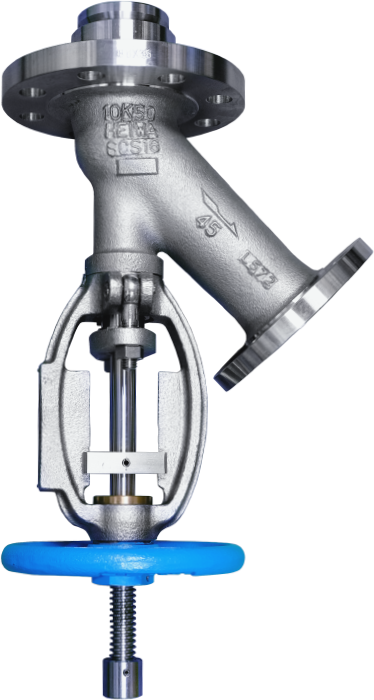

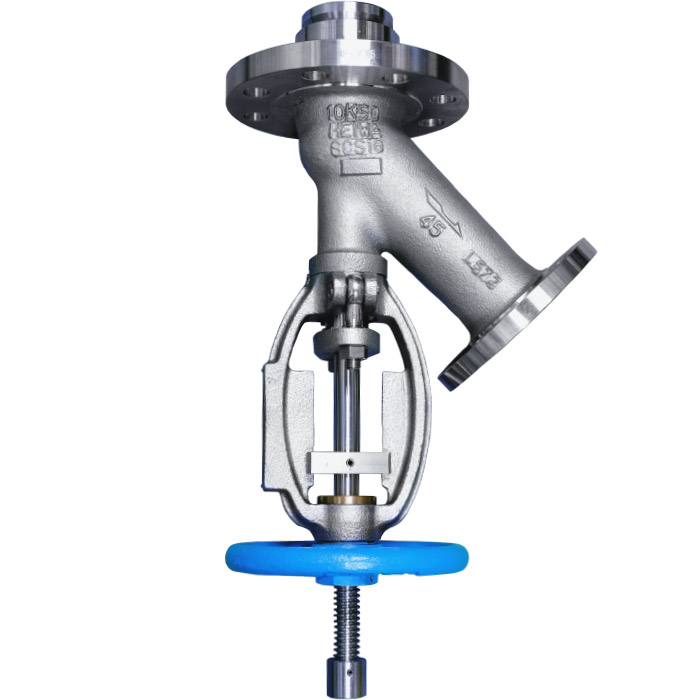

Top Handle Type
Non-rotating stem design minimizes wear
The opening and closing of this type of flush bottom tank valve are manually operated by turning the hand-wheel that is vertically installed below the yoke. Because the yoke sleeve responds to the turning of the hand-wheel, and the part of the valve stem inside the tank only makes straight line motions up or down without rotation, wearing and scratching on the valve trim are greatly reduced.
Side handle type and remote control type
Optional to meet on-site needs
A wide selection of actuation methods are available to cope with actual service environments. The selection of a suitable actuation method for a flush bottom tank valve is determined by on-site actual conditions. All our flush bottom tank valves, be they manually operated, cylinder or actuator operated, or remote operated, are all based on the design of FT series products.
■ CONNECTION SIZE
15A - 250A
■ OPTION
- Remote operation type (Pulley type / Sprocket type)
- Outlet side with socket (Ferrule)
- Gland O-ring mounting mechanism
- Gland purge
* Please contact us for liquid residue measures.
